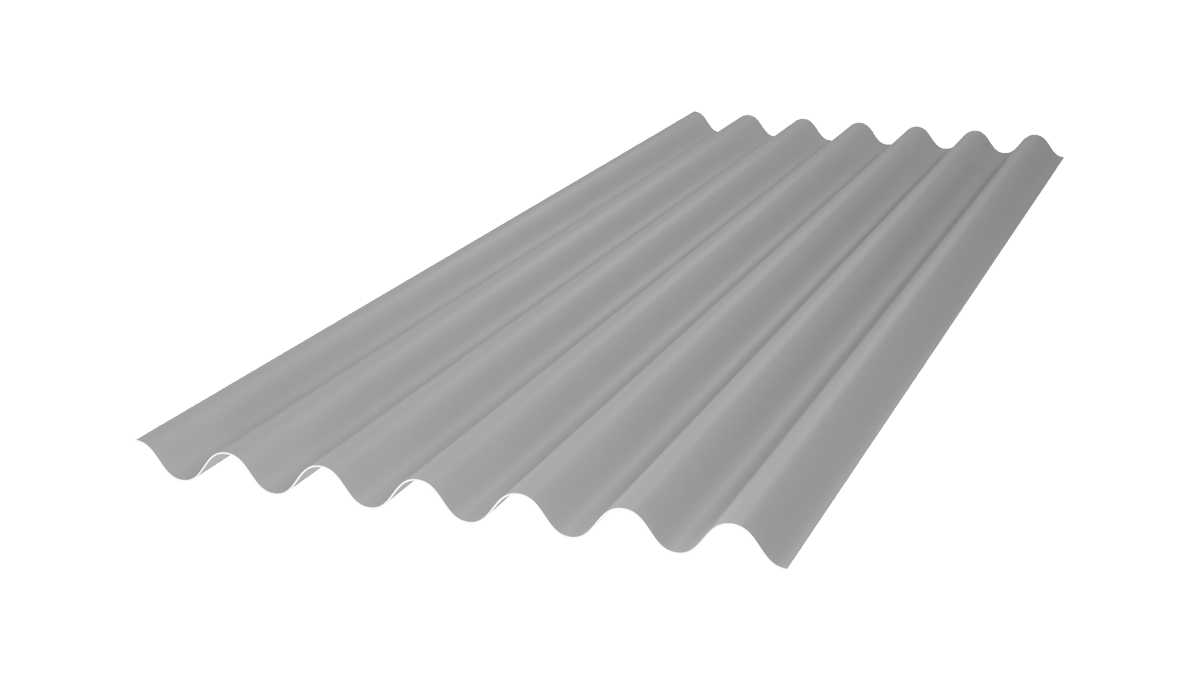

Corrugated Panel

The Corrugated Panel is a timeless profile that combines industrial heritage with modern versatility. Originally used for barns and factories, it has become a go-to solution for designers seeking an authentic, rugged aesthetic. Now enhanced by Metal Lab’s curated colour palette, the Corrugated Panel can be used for both roofing and wall applications in residential, commercial, and agricultural settings. Its exposed fastener system offers ease of installation, while the signature wave pattern provides outstanding strength and visual rhythm.

Quick Facts:

• Ideal for agricultural, industrial, and modern rustic residential projects.
• Lightweight profile makes it easy and economical to install.
• Excellent performance in high wind and snow-load environments.
• Can be installed vertically or horizontally for different design effects.
• Can be pre-cut to custom lengths to minimize waste and labor.

Product Specifications:

• Uses: Roofing or Cladding
• Gauges: 24, 26, 28 (colour selection varies with gauge)
• Slope: 3/12 and greater
• Coverage: Variable
• Length: 3′ to 40′

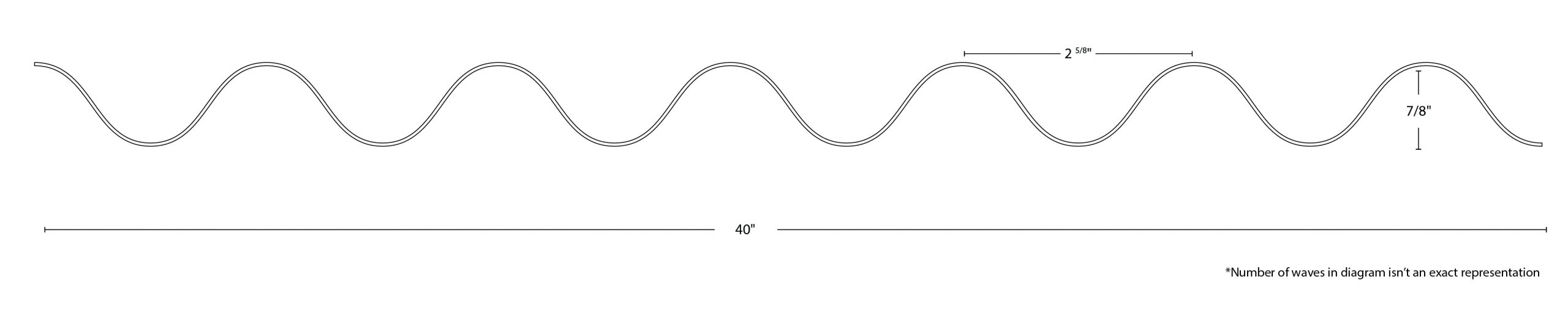

• Rib Height: 7/8″
• Fastener System: Exposed fastener
• Recommended Substrate: Open framing or solid sheathing (confirm with local building code)
