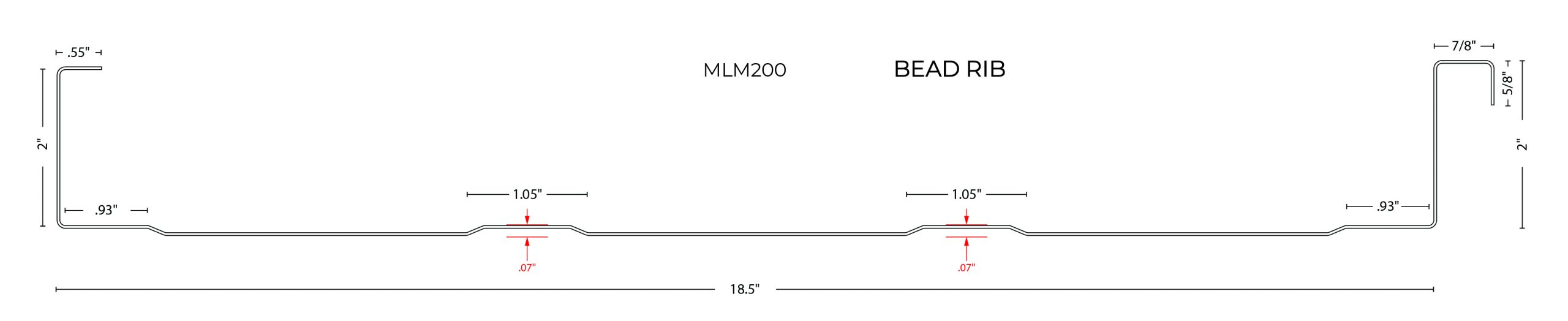

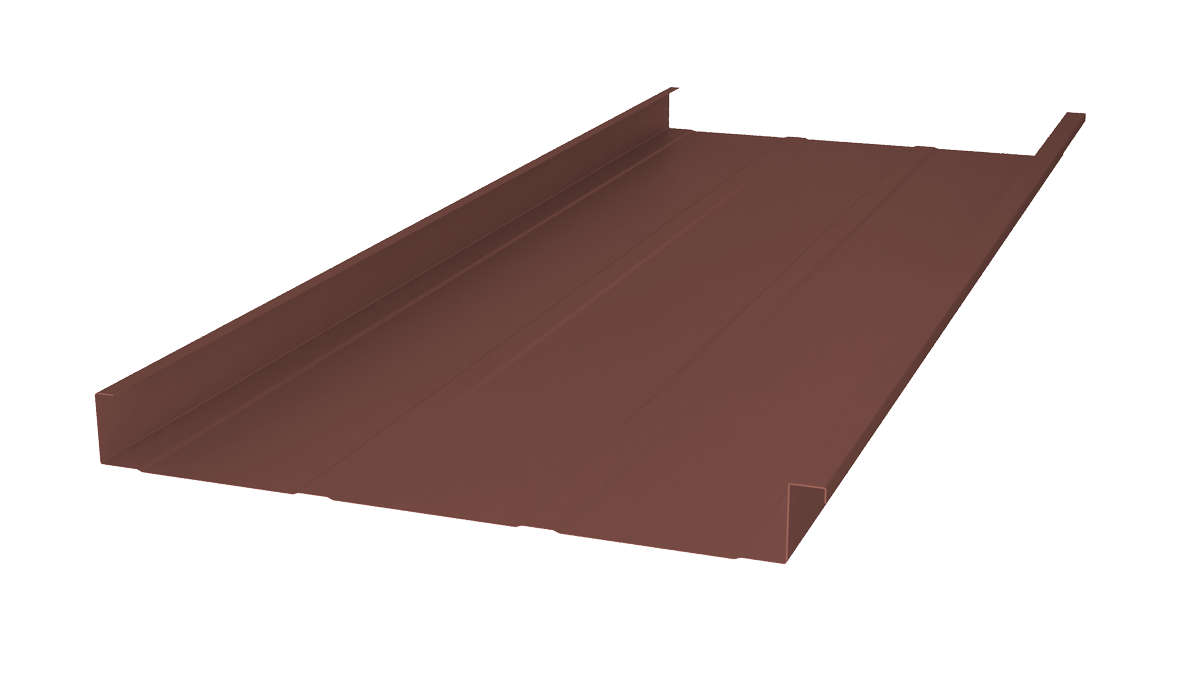

The MLM200 profile delivers bold architectural lines and maximum structural performance. With its tall ribs and hidden fastener system, it is designed for long spans and extreme durability. Ideal for low-slope commercial roofs or dramatic vertical cladding, this profile can be mechanically seamed or snap-locked depending on performance requirements. Available in a variety of gauges and finishes, the MLM200 profile is built for demanding environments and standout aesthetics.

Quick Facts:

• Designed for maximum strength on commercial or institutional buildings.
• High rib profile creates strong visual lines and enhanced water run-off.
• Can be mechanically seamed or snap-locked for different performance needs.
• Suitable for long panel lengths and low-pitch roofs.
• Exceptional wind uplift and water penetration resistance.

Product Specifications:

• Uses: Roofing or Cladding
• Gauges: 26, 24 (colour selection varies with gauge)
• Slope: 1/12 and greater
• Coverage: 18″
• Length: 3′ to 60′
• Rib Height: 2″
• Fastener System: Concealed clip, mechanical seam or snap-lock
• Recommended Substrate: Solid substrate (minimum 1/2″ plywood and confirm with local building code)
